BRAX DSP – Input SPDIF
Lossless sound from digital sources
The BRAX DSP – Input SPDIF module provides a direct path from digital signal sources into the BRAX DSP – with no detours and no compromises. This preserves the music signal in all its purity and creates the foundation for a unique sound and music experience full of precision and detail.

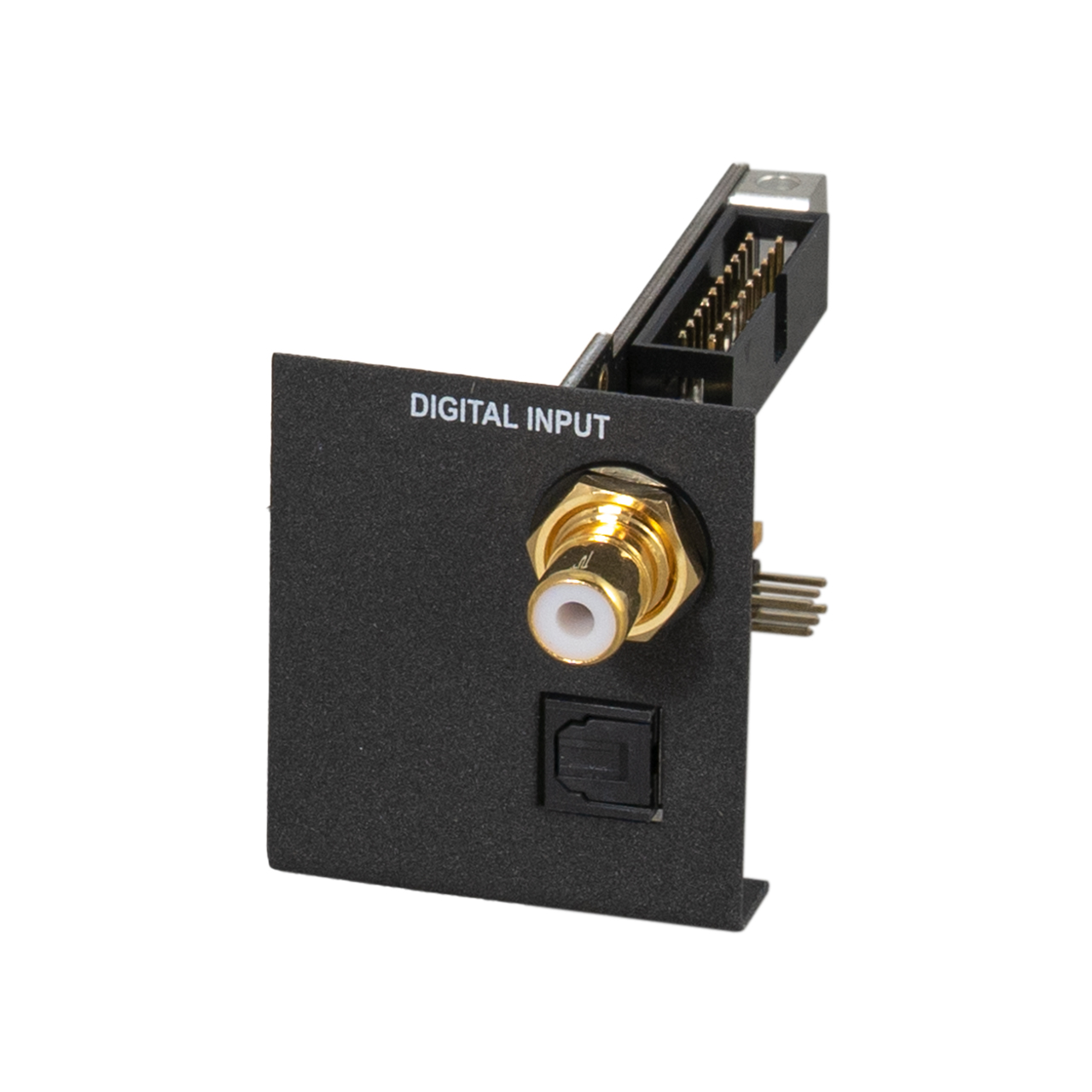

The module features both an optical and a coaxial stereo input in SPDIF format. The optical input supports sampling rates from 12 to 96 kHz, while the coaxial input supports up to 192 kHz. Both inputs operate in the PCM data format and ensure interference-free and absolutely reliable signal processing. With a resolution of 24 bit, the music signal is transmitted completely and without alteration – exactly as provided by the source.
Important: The BRAX DSP – Input SPDIF module is available exclusively as part of the initial BRAX DSP CORE Model configuration and is integrated at the factory – Made in Germany.
Features
- Digital stereo input module in SPDIF format with both optical and coaxial input
- Sampling rate of 12 - 96 kHz for the optical input and 12 - 192 kHz for the coaxial input
- Supports PCM data format for reliable and interference-free signal processing
- High audio resolution with 24 Bit ensures exceptionally detailed sound reproduction
Technical data
| Format | SPDIF |
| Data format | PCM |
| Sampling rate | Optical: 12 - 96 kHz Coaxial: 12 - 192 kHz |
| Signal-to-noise ratio (A-weighted) | 122 dB |
| Total harmonic distortion (THD+N) | < -108 dB (0.0004 %) |
| IM distortion (IMD) | < -98 dB (0.0013 %) |
| Bit rate | 24 |
| Input voltage coaxial input | 1 V - 75 Ohms |
Compatibility
- BRAX DSP CORE model
Note: This module is only intended to be used for the initial installation of a BRAX DSP CORE model.
Scope of delivery
1 x Digital input module in SPDIF format
