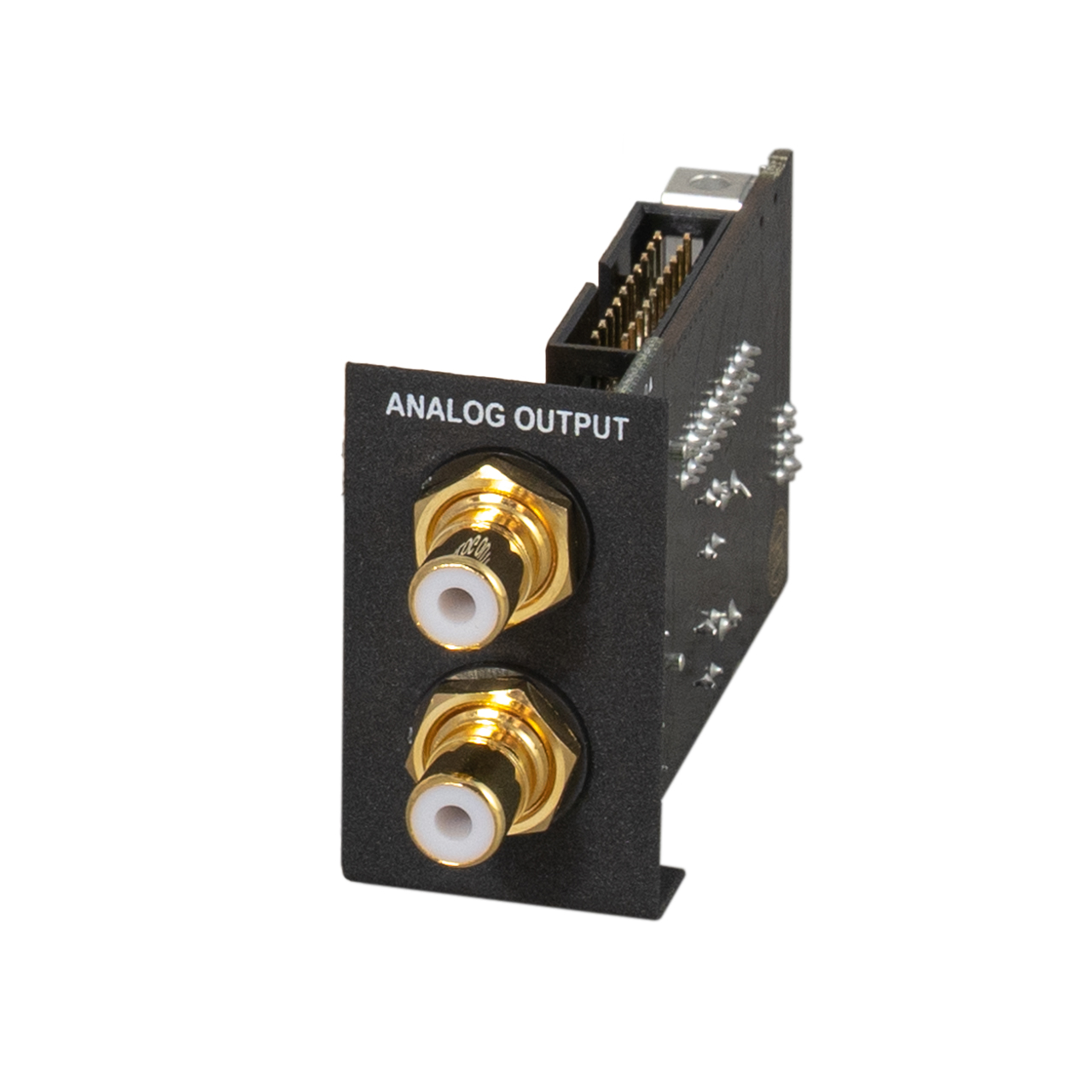

BRAX DSP – Output Analog AKM
Pure, natural sound
For music lovers who value natural and detailed reproduction, the BRAX DSP – Output Analog AKM module is the ideal choice as part of the initial BRAX DSP configuration.
The AK4490REQ D/A converter from Asahi Kasei uses Velvet Sound technology to achieve a particularly harmonious and distortion-free reproduction of the original sound. In combination with the TI/BurrBrown OPA1656 SoundPlus operational amplifier, it creates an analog signal path defined by musicality, transparency, and high precision. Five software-selectable digital FIR output filters with different characteristics, as well as switchable output voltage of 2, 4, or 8 volts, allow flexible adaptation to individual preferences.
Important: The BRAX DSP – Output Analog AKM module is available exclusively as part of the of the initial BRAX DSP CORE model configuration and is integrated at the factory – Made in Germany.
Features
- Outstanding music playback with crystal-clear, uncolored sound thanks to premium-grade components from renowned manufacturers
- Equipped with the high-end AK4490REQ D/A converter from Asahi Kasei
- The AKM AK4490REQ is a 32 Bit, 2-channel high-end D/A converter featuring Velvet Sound technology for pristine, distortion-free audio reproduction
- Analog signal path with high-quality TI/BurrBrown OPA1656 operational amplifier, utilizing SoundPlus technology
- 5 different, software-configurable digital FIR output filters with different characteristics for a perfectly fine-tuned audio experience
- Switchable output voltage of 2, 4 or 8 Volts for flexible connection options
- Display of all relevant measured values in the DSP PC-Tool (min. DSP PC-Tool V4.42a)
Technical data
| Signal converter | Asahi Kasei AK4490REQ |
| Operational amplifier | TI/BurrBrown OPA1656 with SoundPlus technology |
| Sampling rate | 192 kHz |
| Frequency response | 5 Hz - 70 kHz |
| Signal-to-noise ratio (A-weighted) | 122 dB |
| Total harmonic distortion (THD+N) | -108 dB (= 0.0004 %) |
| IM distortion (IMD) | -103 dB (= 0.0007 %) |
| Crosstalk | < -107 dB (@1 kHz) |
| Output voltage | 2 / 4 / 8 Volt RMS adjustable |
Compatibility
- BRAX DSP CORE model
Note: This module is only intended to be used for the initial installation of a BRAX DSP CORE model.
Scope of delivery
1 x analog output module with AKM converter
