BRAX DSP – Upgrade Module – Digital Output SPDIF

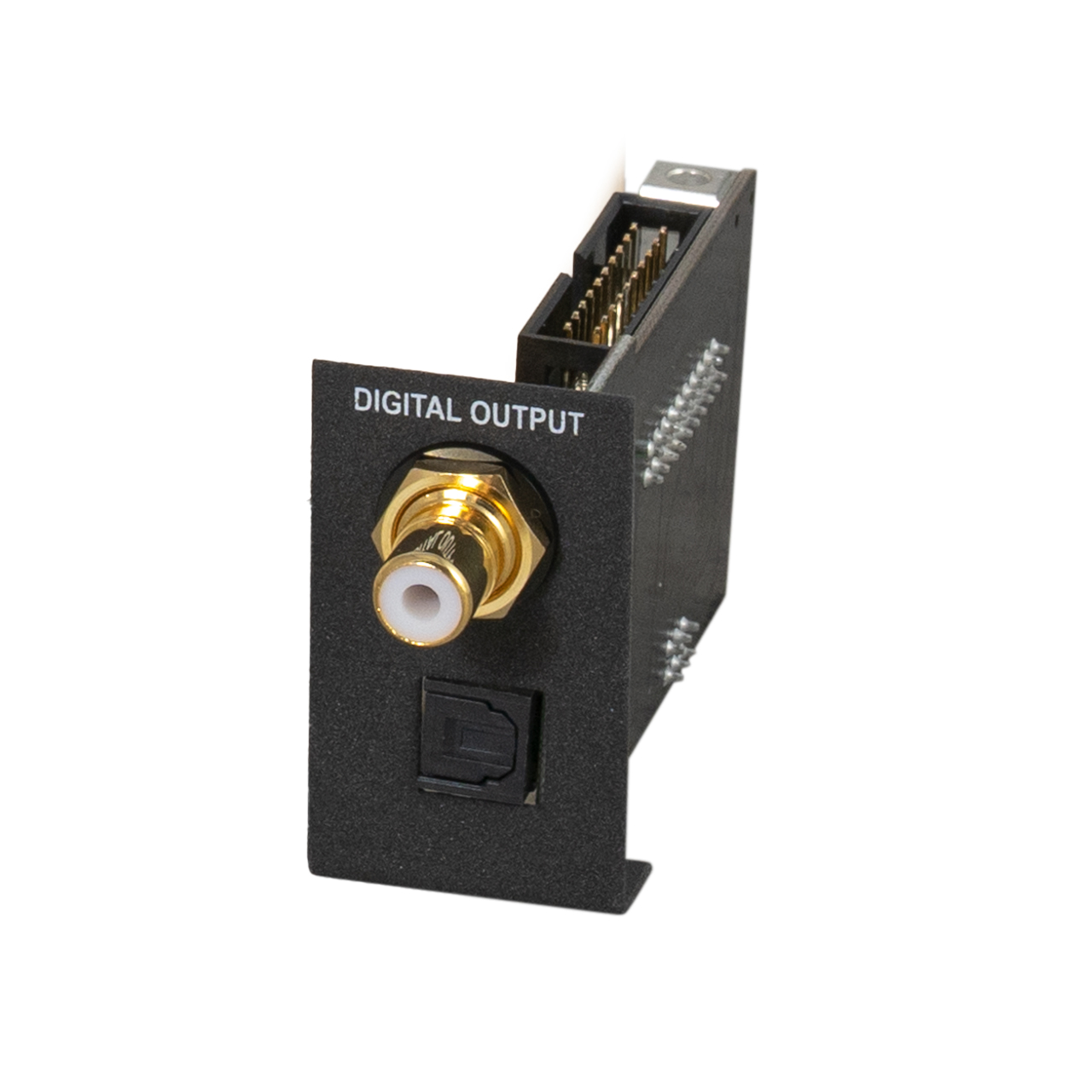

Digital stereo output module with optical and digital input in SPDIF format for retrofitting a BRAX DSP
Lossless digital signal transmission
The BRAX DSP – Upgrade Output Digital SPDIF module is the ideal solution for adding lossless digital signal transmission to existing DSP systems. It not only enables a fully digital signal chain from the DSP to the amplifier, but also provides the basis for using the exclusive DiSAC technology in combination with compatible BRAX amplifiers.
D/A conversion takes place only immediately before the amplifier stages. This enables a fully digital signal chain from the source to the amplifier, ensuring maximum signal fidelity, exceptional detail resolution, and a fascinating sound experience full of precision and musicality.
The module provides both an optical and a coaxial stereo output in SPDIF format. For maximum compatibility, the sampling rate can be flexibly switched between 48, 96, or 192 kHz. Thanks to 24-bit resolution and an optimized coaxial output voltage of 1 V at 75 ohms, consistently excellent signal quality is assured.
A special highlight is the proprietary DiSAC technology: in combination with the BRAX MATRIX MX4 PRO, or as DiSAC 2.0 with the BRAX REVELATION RX2 PRO featuring the optional digital input, it enables unique volume control without any loss of sound quality – for a music experience at absolute reference level.
This high-end product – Made in Germany – is completed by its presentation in an elegant wooden case, underlining the exceptional standards of the BRAX philosophy.
Features
- Lossless digital signal transmission all the way to the power amplifier – D/A conversion takes place directly inside the amplifier right before the output stages for maximum audio fidelity and sound quality
- Optical and coaxial stereo output in SPDIF format
- Switchable sampling rate of 48, 96, or 192 kHz for maximum compatibility with various digital audio systems
- High-resolution audio with 24 Bit depth for incredibly detailed sound reproduction
- Coaxial output with optimized output voltage of 1 V at 75 ohms for consistent signal integrity
- Exclusive and proprietary DiSAC (Digital Signal Analog Controlled) volume control in combination with the BRAX MATRIX MX4 PRO amplifier
- DiSAC 2.0 with the BRAX REVELATION RX2 PRO amplifier when equipped with a digital input module
- Can be upgraded in any BRAX DSP including automatic detection of the module and display of the relevant measured values in the DSP PC-Tool (min. DSP PC-Tool V4.42a required)
Technical data
| Format | SPDIF |
| Data format | PCM |
| Sampling rate | Optical: 12 - 96 kHz Coaxial: 12 - 192 kHz |
| Signal-to-noise ratio (A-weighted) | 122 dB |
| Total harmonic distortion (THD+N) | < -108 dB (0.0004 %) |
| IM distortion (IMD) | < -98 dB (0.0013 %) |
| Bit rate | 24 |
| Input voltage coaxial input | 1 V - 75 Ohms |
Compatibility
- BRAX DSP
Scope of delivery
1 x BRAX DSP – Upgrade Module – Analog Output with AKM

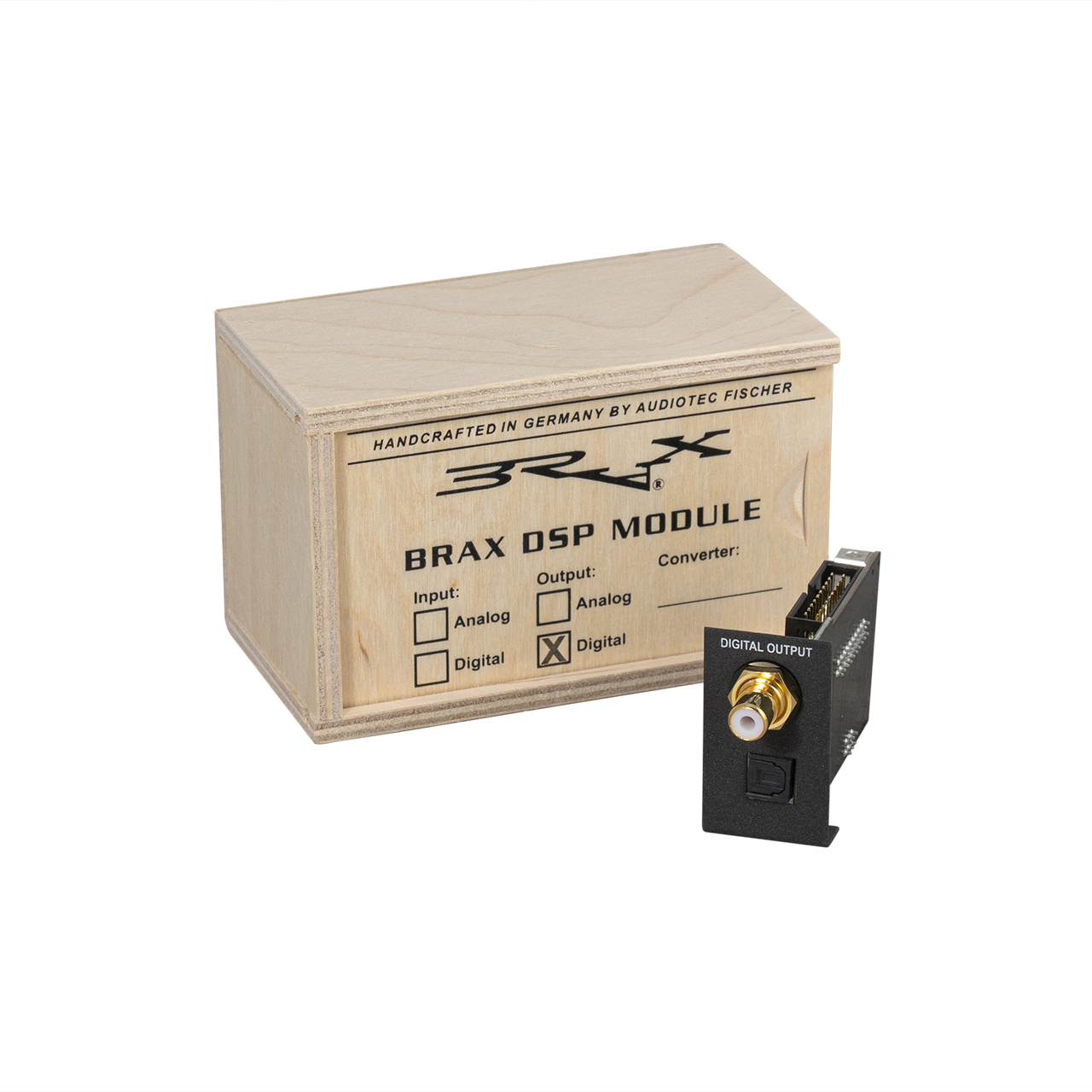

1 x Exclusive wooden box with BRAX design
Features
- Lossless digital signal transmission all the way to the power amplifier – D/A conversion takes place directly inside the amplifier right before the output stages for maximum audio fidelity and sound quality
- Optical and coaxial stereo output in SPDIF format
- Switchable sampling rate of 48, 96, or 192 kHz for maximum compatibility with various digital audio systems
- High-resolution audio with 24 Bit depth for incredibly detailed sound reproduction
- Coaxial output with optimized output voltage of 1 V at 75 ohms for consistent signal integrity
- Exclusive and proprietary DiSAC (Digital Signal Analog Controlled) volume control in combination with the BRAX MATRIX MX4 PRO amplifier
- DiSAC 2.0 with the BRAX REVELATION RX2 PRO amplifier when equipped with a digital input module
- Can be upgraded in any BRAX DSP including automatic detection of the module and display of the relevant measured values in the DSP PC-Tool (min. DSP PC-Tool V4.42a required)
Technical data
| Format | SPDIF |
| Data format | PCM |
| Sampling rate | Optical: 12 - 96 kHz |
| Signal-to-noise ratio (A-weighted) | 122 dB |
| Total harmonic distortion (THD+N) | < -108 dB (0.0004 %) |
| IM distortion (IMD) | < -98 dB (0.0013 %) |
| Bit rate | 24 |
| Input voltage coaxial input | 1 V - 75 Ohms |
Compatibility
- BRAX DSP
Scope of delivery
1 x BRAX DSP – Upgrade Module – Analog Output with AKM
1 x Exclusive wooden box with BRAX design
