KIT 165 S300

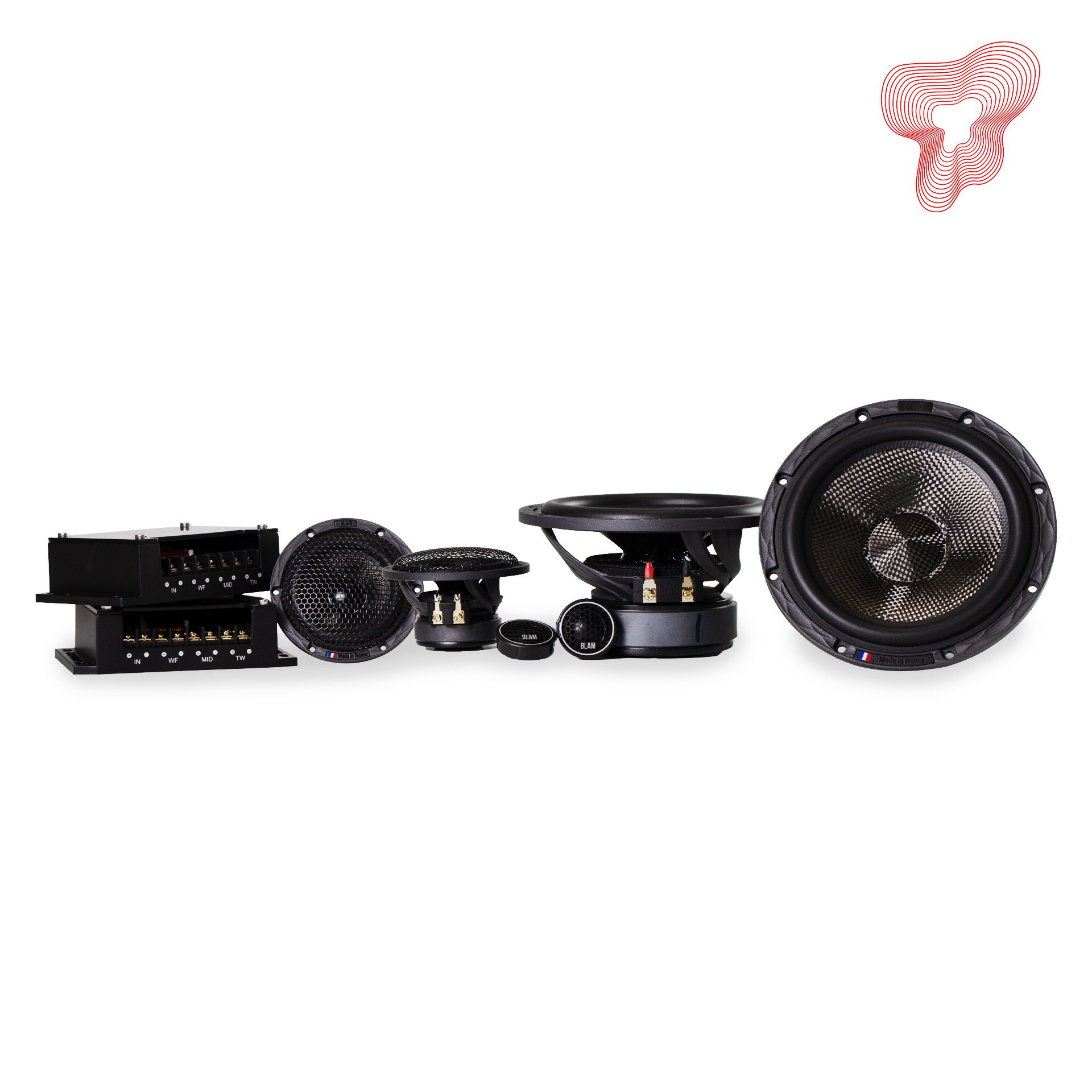

The Kit 165 S300 is a three-way audio system offering precise and powerful sound reproduction. It includes two 6.5’’ (165 mm) woofers with a maximum power of 250 W, a frequency response of 50 Hz to 5 kHz and an impedance of 2 Ω, equipped with an ultra-rigid carbon fiber cone and an oversized magnetic motor. Two S 3.55 midrange drivers ensure a wide bandwidth of 200 Hz to 27 kHz with an impedance of 3 Ω, integrating an aluminum phase plug and gold-plated terminals for optimal signal transmission. The highs are handled by two T20HR tweeters with 20 mm textile dome, offering a frequency response of 1.5 kHz to 40 kHz with an impedance of 4 Ω. The set is completed by BFX03 filters for optimal signal management, guaranteeing an immersive and detailed audio experience.

Categories: Kit, Signature

Description

THREE SEPARATE VOICE KIT 165 S300

THIS KIT INCLUDES

x2 Woofer 6.300

Woofer 6-1/2’’ (165 mm)

Max. power 250 W / Nominal power 125 W

Frequency response 50 Hz – 5 kHz

Impedance 2 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” spider – 38 mm (1.5″) voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block

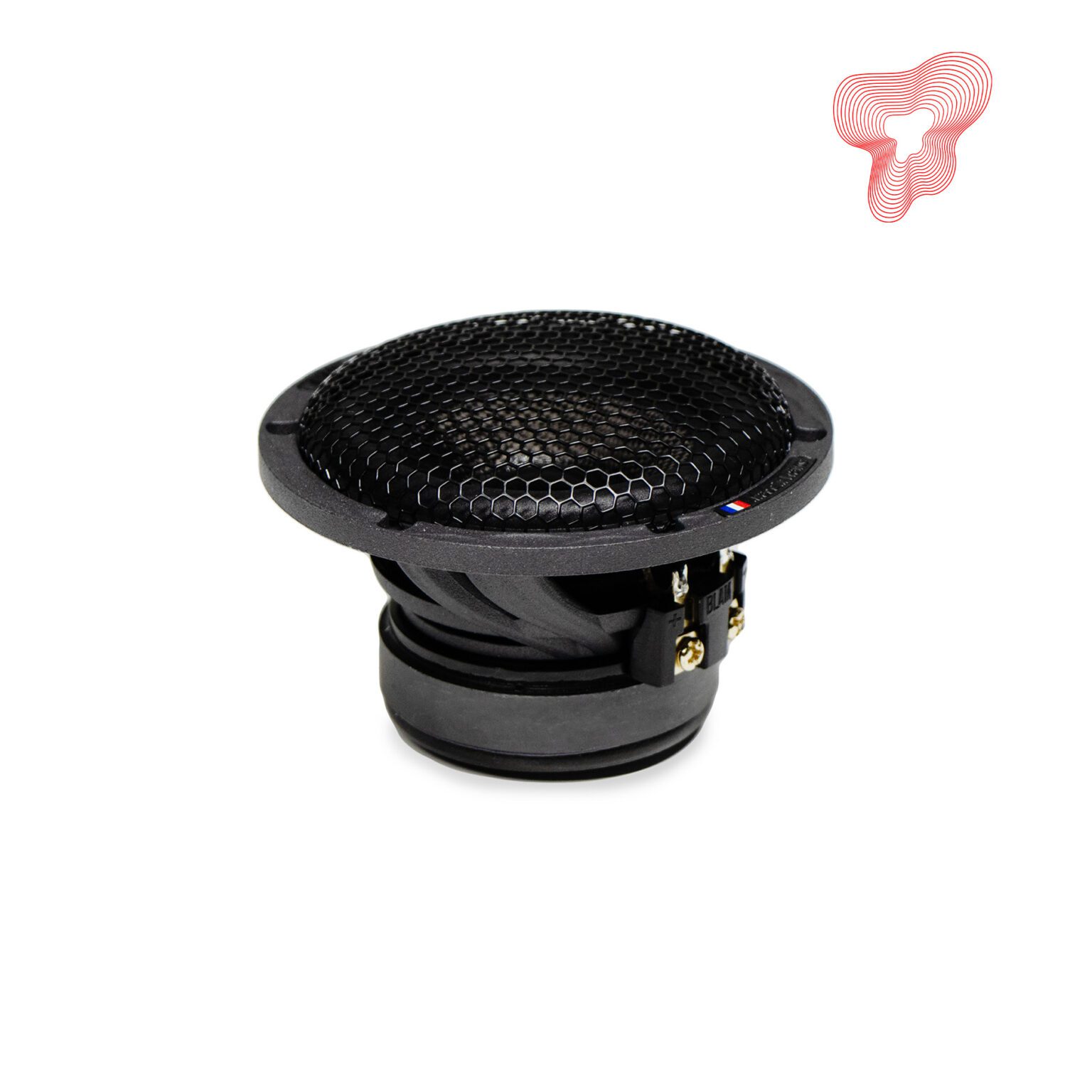

x2 Medium S 3.55

Extended frequency, can be used in full range

Frequency response 200 Hz – 27 KHz

Impedance 3 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “conex” spider – 20mm voice coil, fiberglass support – Oversized 55mm x 10mm magnetic motor – Machined aluminum phase plug – Gold-plated terminal.

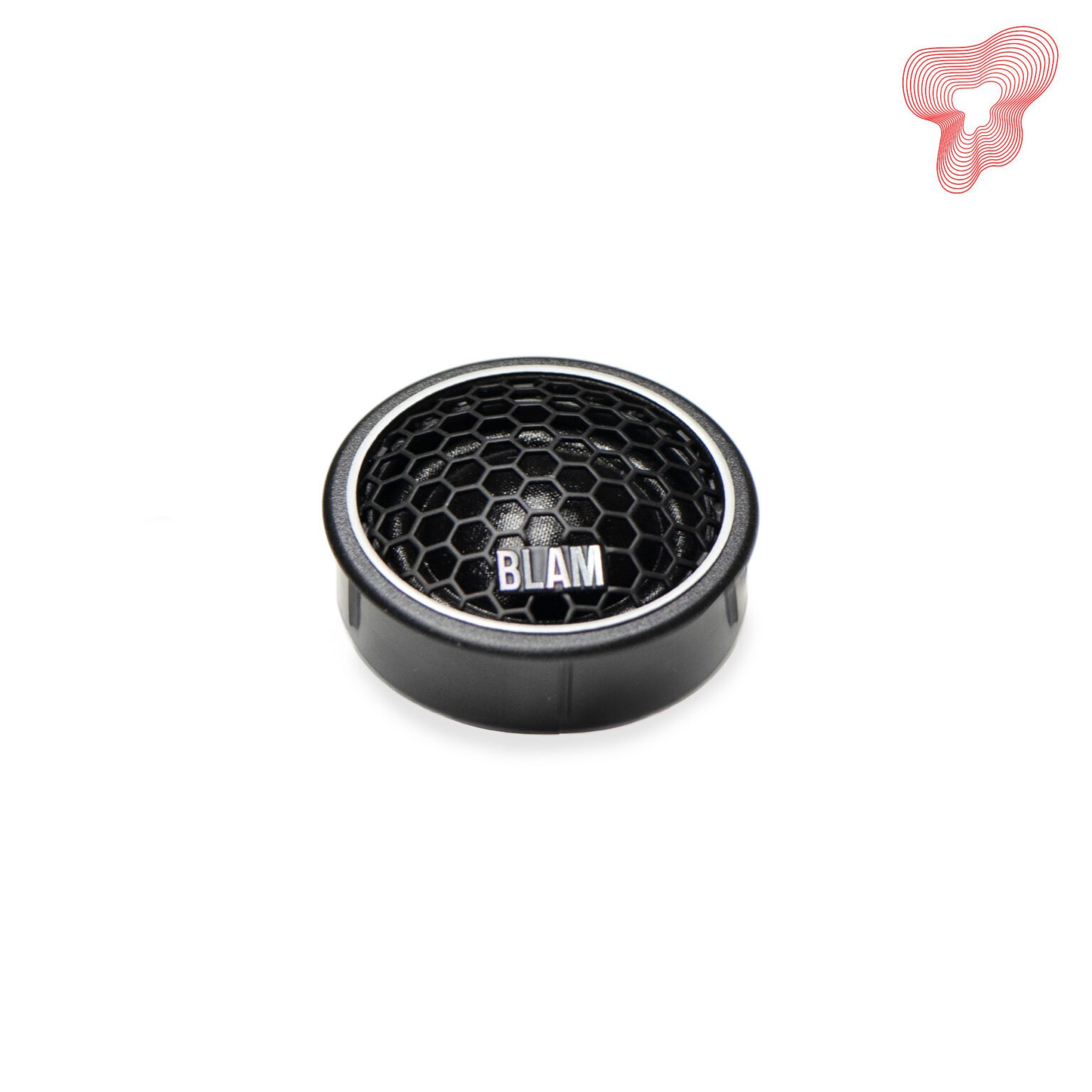

x2 Tweeter T20HR

20mm (3/4″) textile dome diaphragm

Max. power 100 W – Nominal power 15 W

Frequency response 1.5 Hz – 40 KHz

Impedance 4 Ω

Crossover BFX03
