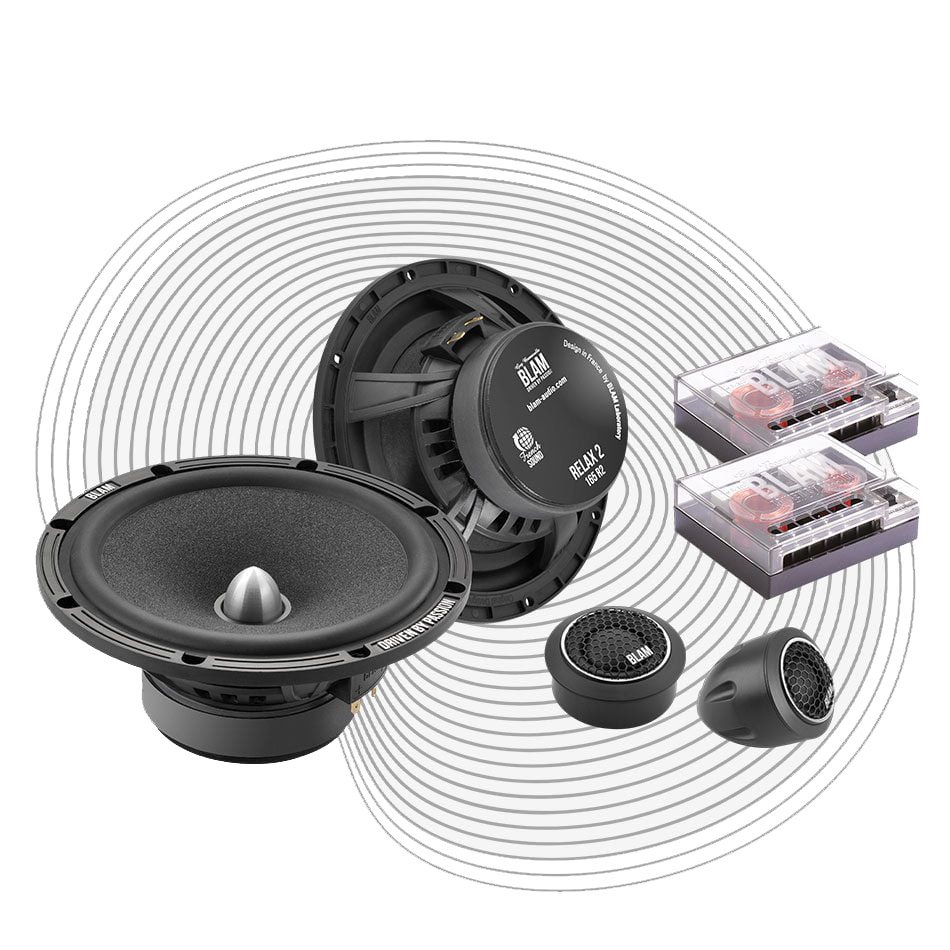

The 165 mm 2-way separate speaker system consists of two 165 mm woofers and two 20 mm soft dome tweeters, delivering high-quality sound with a maximum power of 150 W and a sensitivity of 95 dB. The frequency response extends from 60 Hz to 25 kHz, and the system has an impedance of 2 Ω. The woofers have high-quality cellulose pulp cones and are equipped with butyl suspensions, offering optimum durability and performance. The tweeters benefit from a N38 neodymium motor and a soft dome, ensuring precise reproduction of high frequencies. The system includes 2-way filters to manage low and high frequencies, with an adjustable tweeter level according to preference. Mounting accessories and an instruction manual complete the set.
This kit is composed of two 165mm (6.5″) woofers, two 20mm (3/4″) soft dome tweeters and two 2-way crossovers: low-pass 6dB/octave and high-pass 12dB/octave with adjustable tweeter level -3dB, 0dB and +3dB.
High-efficiency system 2 separate ways
165 mm woofer
Maximum power 150 W – Nominal power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition
165R2 WOOFER 165 MM165 mm (6.5”) woofer
Maximum power 150 W / Nominal power 75 W
Frequency response 60 Hz – 8 kHz
Sensitivity 95 dB – Impedance 2 Ω
Fiberglass-reinforced composite saladier – High-quality treated cellulose pulp diaphragm – Butyl peripheral suspension – “Conex” long-life spider – Magnetic motor Long-life “Conex” spider – 25 mm coil on Kapton support – 85 mm x 17 mm magnetic motor – Thick magnetic circuit (5 mm)
R2T20 SOFT DOME TWEETER
High-quality 20 mm soft dome tweeter
Maximum power 100 W / Nominal power 10 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 90 dB – Impedance 3 Ω
N38 neodymium motor – Special high-quality soft dome – Ferrofluid for high power output
Filtres 2 voies
low-pass 6 dB/octave
12 dB/octave high-pass with adjustable tweeter levels -3 dB, 0 dB and +3 dB.
