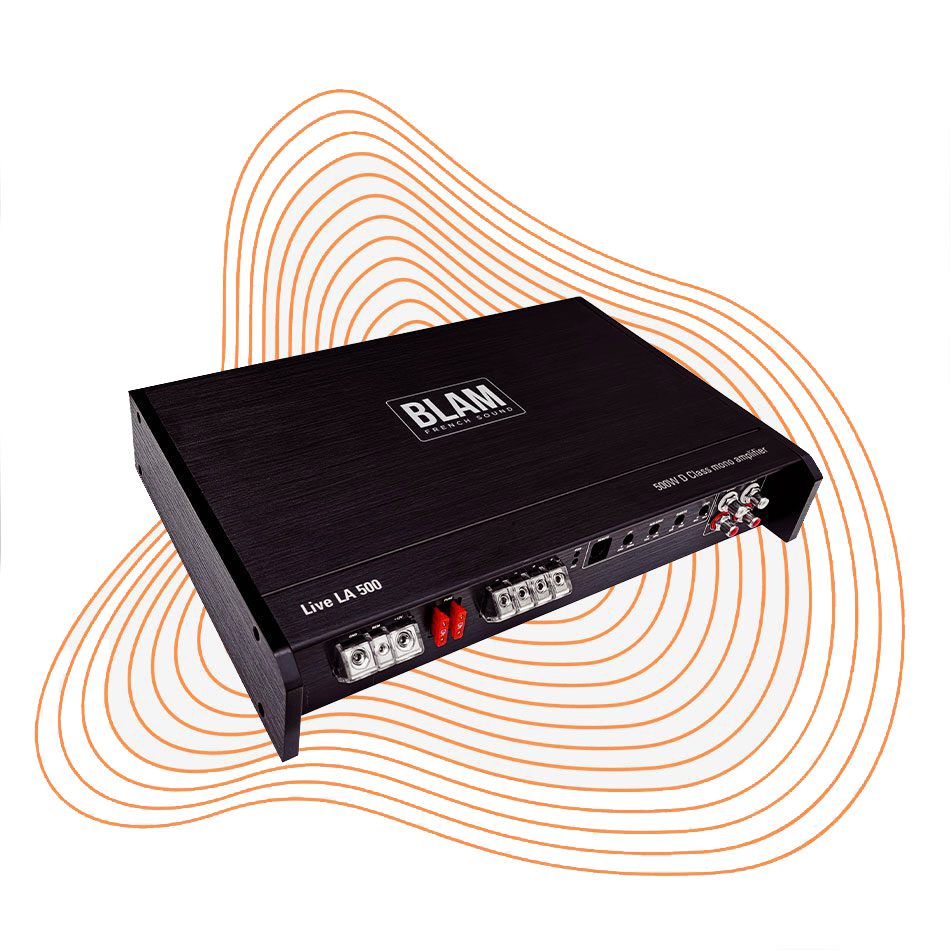

LA 500 amplifier

MONO AMPLIFIER 500 W CLASS D

Technical details

We have developed the LIVE amplifiers taking into account all the parameters. We listened and compared each component until we reached our goals.

The result is a monumental reserve of energy that reproduce a natural music in its smallest details. The bass and extreme bass are faithfully reproduced with impressive strength.

Due to their large volume, they have a large dissipation surface which ensures their cooling, stability and performance. They benefit from a sober and robust design, high quality finish and are available in two colors, black and silver.

Composition

• Low level RCA input: 0.5 V – 8.5 V
• RMS power (4 Ω): 230 W
• RMS power (2 Ω): 400 W
• RMS power (1 Ω): 500 W
• Low pass filter: 30 Hz – 250 Hz (24 dB/octave)
• Subsonic filter: 15 Hz – 35 Hz (24 dB/octave)
• Frequency response: 15 – 250 Hz
• Bass boost: 0-10 dB at 45 Hz
• Signal-to-noise ratio > 90 dB
• Protections: short circuit / low impedance / polarity reversal / thermal protection
• Dimensions (L x W x H): 346 mm x 217 mm x 60 mm
• Wired remote control included

This amplifier is also available in Black edition
