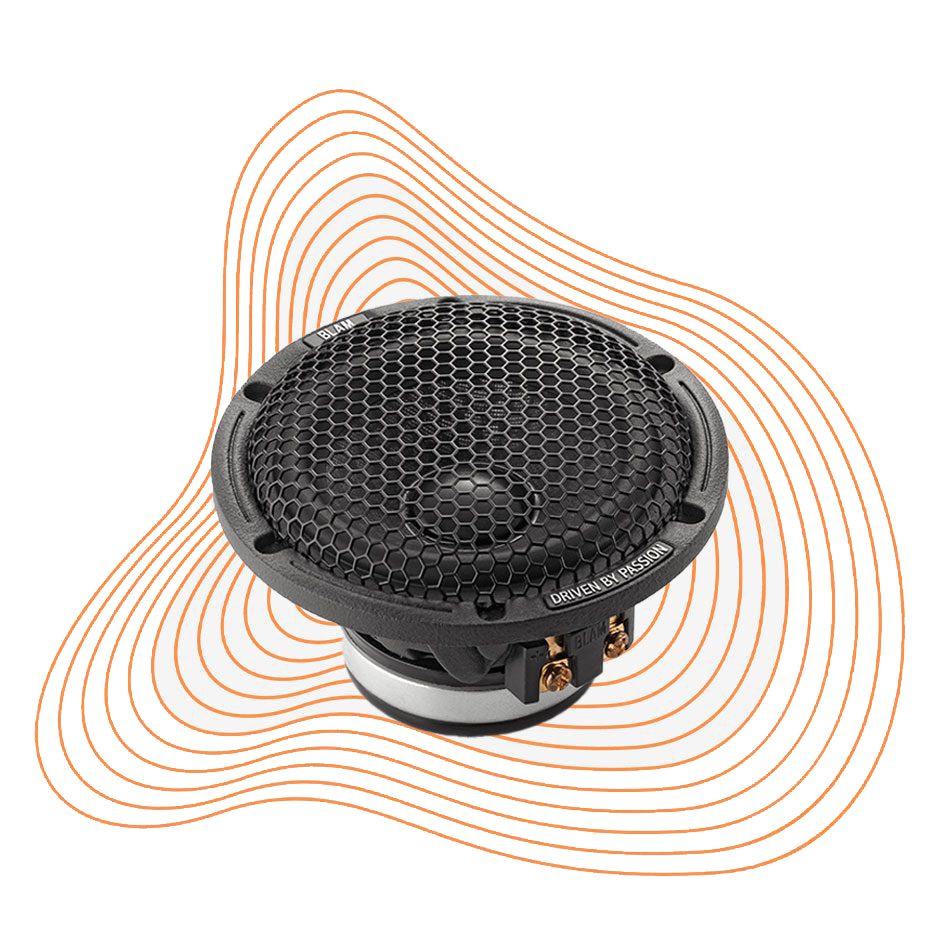

LFR80 speaker

80 MM (3”) FULL RANGE SPEAKER

Technical details

With a very linear frequency response that extends into the high end, the LFR80 reproduces music with incredible resolution that will make you want to rediscover all your favorite songs.

This kit includes two 80 mm (3″) full-range speakers.

80 mm full-range speaker
Max. power handling 100 W – Nominal power handling 25 W* (max. power handling 100 W – nominal power handling 25 W*)
Frequency response 150 Hz – 37 kHz
Sensitivity 91 dB – Impedance 3 Ω

*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave

Composition

Max. power 100 W – Nominal power 25 W*.
Frequency response 150 Hz – 37 kHz
Sensitivity 91 dB – Impedance 3 Ω
Mounting depth 45 mm (1.8″)

Molded aluminum basket – Fiberglass and epoxy resin composite membrane – Peripheral butyl surround – Long life spider “Conex” – 20 mm voice coil on TIL former – 50 mm x 10 mm neodymium motor

Optimized for operation in a closed volume of 0.3 L to 0.5 L
Recommended minimum cut-off frequency 250 Hz 12 dB/octave

Supplied accessories :
Fixing screws
Protective grille
Operating instructions

OS80 compatible with LFR80
SOLID ALUMINUM, FACTORY-FINISHED CLOSE CABINET
Available in two colors: light gray and matte black
