Medium R80 dB

Medium R80 dB

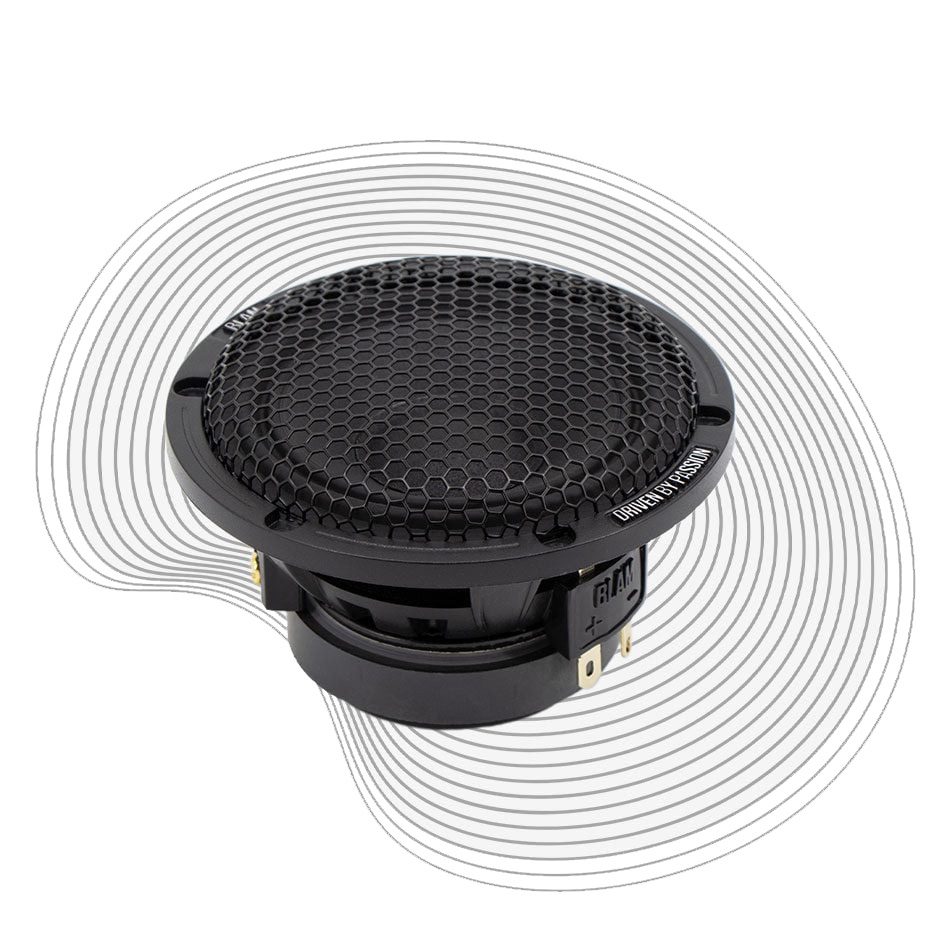

The 80 mm (3″) dual-voice midrange driver offers a maximum power of 100 W and a nominal power of 25 W, depending on the crossover frequency. Its frequency response ranges from 150 Hz to 20 kHz, with a sensitivity of 86 dB and an impedance of 2×3 Ω. This model is equipped with a reinforced composite basket, a high-quality cellulose pulp cone, a butyl surround, and a long-life “Conex” spider. The minimum recommended crossover frequency is 250 Hz at 12 dB/octave. The kit includes fixing screws, a protective grille and an instruction manual.

Categories: Medium, Relax

Description

80 mm (3″) dual voice-coil midrange speaker

Technical details

Max Power 100 W – Nominal Power 25 W*
Frequency Response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω

*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave

Composition

R80 80 MM MID-Range SPEAKER
Maximum Power 100 W – Nominal Power 25 W*
Frequency Response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
Built-in Depth 45.5 mm (1.8″)

Composite basket reinforced in fiberglass – High quality treated cellulose pulp membrane – Butyl rubber surround – Long life “Conex” damper – 20 mm ‘0.8”) voice coil on fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet

Recommended minimum cut-off frequency 250 Hz 12 dB/octave

Supplied accessories :
Fixing screws
Protective grille
Operating instructions

Additional Info



TECHNICAL SHEET

R80 DB DATA SHEET
