URC.3
Universal remote control for BRAX, HELIX and MATCH DSP products
Description
Features
Technical data
Compatibility
Scope of delivery
Description

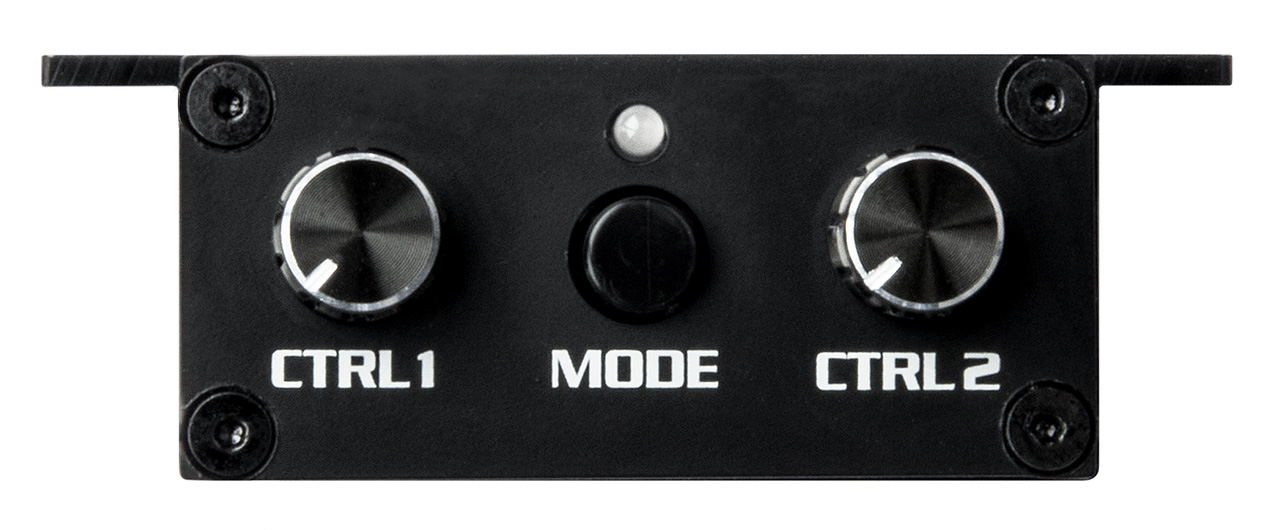

The universal cable remote control URC.3 allows controlling different functions such as subwoofer volume or HEC / MEC / AUX volume of BRAX, HELIX and MATCH DSP products. It consists of two rotary knobs and a switch, all of which can be easily defined from our DSP PC-Tool suite. The specific configuration options for each product can be found in the "Device configuration menu” (DCM) software package.
Features
- CONTROL I and CONTROL II (CTRL): Various functions can be selected in the DSP PC-Tool Software, e.g. controlling the master volume, controlling the subwoofer volume, controlling the HEC / MEC / AUX volume etc.
- MODE: Various functions can be selected in the DSP PC-Tool Software, e.g. activating the digital input, activating the HEC / MEC / AUX input, switching between two DSP-setups, deactivating all sound optimizing features of the DSP for demonstration purposes etc.
- STATUS LED: The LED shows the status of the MODE switch
- 17’ / 5.2 m connection cable
- Mounting material included
Technical data
| Control elements | 2 x Rotary knob 1 x Switch |
| Cable length | 5,2 Meter |
| Connector | MiniDIN (8-pole) |
| Functionality BRAX NOX4 DSP | Control I / II: - Master Volume - Subwoofer Volume - Digital Volume |
| Functionality HELIX DSP ULTRA S | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP ULTRA | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP PRO (MK1/MK2/MK3) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP MINI (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP.2 / .3 |
Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - AUX In - Digital In - Setup Switch |
| Functionality HELIX P SIX DSP ULTIMATE | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX P SIX DSP (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V TWELVE DSP (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V EIGHT DSP ULTIMATE | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear AttenuationMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V EIGHT DSP MK2 | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V EIGHT DSP | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX AMPLIFY 206 DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer Volume - Rear AttenuationMode Switch: - Setup Switch - Digital In - AUX In |
| Functionality HELIX M SIX DSP | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX M FOUR DSP | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality MATCH DSP | Control I / II: - Master Volume - AUX Volume - Subwoofer VolumeMode Switch: - Demo Mode - AUX In - Setup Switch |
| Functionality MATCH M 5.4DSP | Control I / II: - Master Volume - Digital Volume - Subwoofer VolumeMode Switch: - Demo Mode - Digital In - Setup Switch |
| Functionality MATCH M 5DSP (MK1 / MK2) |
Control I / II: - Master Volume - Digital Volume - Subwoofer VolumeMode Switch: - Demo Mode - Digital In - Setup Switch |
| Functionality MATCH UP 10DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 8BMW | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 8DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 7BMW | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 7DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 6DSP | Control I / II: - Master Volume - Digital Volume - Subwoofer Volume - Rear AttenuationMode Switch: - Setup Switch - Digital In |
| Functionality MATCH UP 6DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH PP 86DSP MK2 | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP)Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH PP 86DSP |
Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH PP 82DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer VolumeMode Switch: - Demo Mode - AUX In - Digital In - Setup Switch |
| Functionality MATCH PP 62DSP | Control I / II: - Master Volume - MEC Volume - Subwoofer VolumeMode Switch: - Demo Mode - MEC / AUX In - Setup Switch |
| Functionality MATCH PP 52DSP | Control I / II: - Master Volume - AUX Volume - Subwoofer VolumeMode Switch: - Demo Mode - AUX In - Setup Switch |
| Functionality C-DSP / P-DSP | Control I: - Master VolumeControl II: - Subwoofer VolumeMode Switch: - Opto Mode |
Explanation:
Control I & Control II functionalities:
Master Volume = controlling the master volume
Subwoofer Volume = controlling the subwoofer volume
Digital Volume = controlling the volume of the digital input
HEC / MEC / AUX Volume = controlling the volume of the HEC / MEC / AUX input
Rear Attenuation = controlling the volume of the rear speakers. Only in combination with Virtual Channel Processing (VCP)
Mode Switch functionalities:
Setup Switch = switching between DSP memory 1 and DSP memory 2
Digital In = switching between the analog and digital input
HEC / MEC / AUX In = switching between the analog and HEC / MEC / AUX input
Demo Mode = deactivating all sound optimizing features of the DSP for demonstration
Opto Mode = switching between the analog and optical input
Compatibility
Compatible with all BRAX, HELIX and MATCH DSP products with Control Input or Smart Control Port.
An SCP-to-Control Input adaptor (art. no. M141313) is required for connection to a DSP product with SCP input. If the adaptor is not included with your DSP device, it is available separately from your authorized dealer.
Scope of delivery
1 x Cable remote control URC.3
1 x Connection cable 17’ / 5.2 m
1 x Mounting material
Features
Features
- CONTROL I and CONTROL II (CTRL): Various functions can be selected in the DSP PC-Tool Software, e.g. controlling the master volume, controlling the subwoofer volume, controlling the HEC / MEC / AUX volume etc.
- MODE: Various functions can be selected in the DSP PC-Tool Software, e.g. activating the digital input, activating the HEC / MEC / AUX input, switching between two DSP-setups, deactivating all sound optimizing features of the DSP for demonstration purposes etc.
- STATUS LED: The LED shows the status of the MODE switch
- 17’ / 5.2 m connection cable
- Mounting material included
Technical data
Technical data
| Control elements | 2 x Rotary knob 1 x Switch |
| Cable length | 5,2 Meter |
| Connector | MiniDIN (8-pole) |
| Functionality BRAX NOX4 DSP | Control I / II: - Master Volume - Subwoofer Volume - Digital Volume |
| Functionality HELIX DSP ULTRA S | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP ULTRA | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP PRO (MK1/MK2/MK3) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP MINI (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP.2 / .3 | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - AUX In - Digital In - Setup Switch |
| Functionality HELIX P SIX DSP ULTIMATE | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX P SIX DSP (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V TWELVE DSP (MK1/MK2) | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V EIGHT DSP ULTIMATE | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V EIGHT DSP MK2 | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX V EIGHT DSP | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX AMPLIFY 206 DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation Mode Switch: - Setup Switch - Digital In - AUX In |
| Functionality HELIX M SIX DSP | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality HELIX M FOUR DSP | Control I / II: - Master Volume - HEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - HEC / AUX In |
| Functionality MATCH DSP | Control I / II: - Master Volume - AUX Volume - Subwoofer Volume Mode Switch: - Demo Mode - AUX In - Setup Switch |
| Functionality MATCH M 5.4DSP | Control I / II: - Master Volume - Digital Volume - Subwoofer Volume Mode Switch: - Demo Mode - Digital In - Setup Switch |
| Functionality MATCH M 5DSP (MK1 / MK2) | Control I / II: - Master Volume - Digital Volume - Subwoofer Volume Mode Switch: - Demo Mode - Digital In - Setup Switch |
| Functionality MATCH UP 10DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 8BMW | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 8DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 7BMW | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 7DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH UP 6DSP | Control I / II: - Master Volume - Digital Volume - Subwoofer Volume - Rear Attenuation Mode Switch: - Setup Switch - Digital In |
| Functionality MATCH UP 6DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH PP 86DSP MK2 | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume - Rear Attenuation (only with VCP) Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH PP 86DSP | Control I / II: - Master Volume - MEC / AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Setup Switch - Digital In - MEC / AUX In |
| Functionality MATCH PP 82DSP | Control I / II: - Master Volume - AUX Volume - Digital Volume - Subwoofer Volume Mode Switch: - Demo Mode - AUX In - Digital In - Setup Switch |
| Functionality MATCH PP 62DSP | Control I / II: - Master Volume - MEC Volume - Subwoofer Volume Mode Switch: - Demo Mode - MEC / AUX In - Setup Switch |
| Functionality MATCH PP 52DSP | Control I / II: - Master Volume - AUX Volume - Subwoofer Volume Mode Switch: - Demo Mode - AUX In - Setup Switch |
| Functionality C-DSP / P-DSP | Control I: - Master VolumeControl II: - Subwoofer Volume Mode Switch: - Opto Mode |
Explanation:
Control I & Control II functionalities:
Master Volume = controlling the master volume
Subwoofer Volume = controlling the subwoofer volume
Digital Volume = controlling the volume of the digital input
HEC / MEC / AUX Volume = controlling the volume of the HEC / MEC / AUX input
Rear Attenuation = controlling the volume of the rear speakers. Only in combination with Virtual Channel Processing (VCP)
Mode Switch functionalities:
Setup Switch = switching between DSP memory 1 and DSP memory 2
Digital In = switching between the analog and digital input
HEC / MEC / AUX In = switching between the analog and HEC / MEC / AUX input
Demo Mode = deactivating all sound optimizing features of the DSP for demonstration
Opto Mode = switching between the analog and optical input
Compatibility
Compatibility
Compatible with all BRAX, HELIX and MATCH DSP products with Control Input or Smart Control Port.
An SCP-to-Control Input adaptor (art. no. M141313) is required for connection to a DSP product with SCP input. If the adaptor is not included with your DSP device, it is available separately from your authorized dealer.
Scope of delivery
Scope of delivery
1 x Cable remote control URC.3
1 x Connection cable 17’ / 5.2 m
1 x Mounting material
